Description

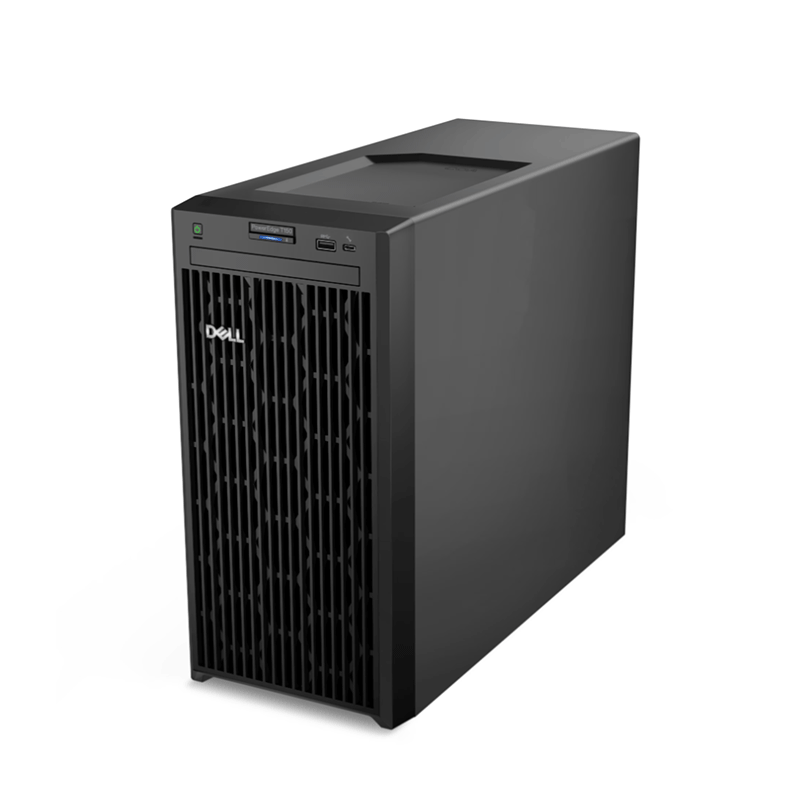

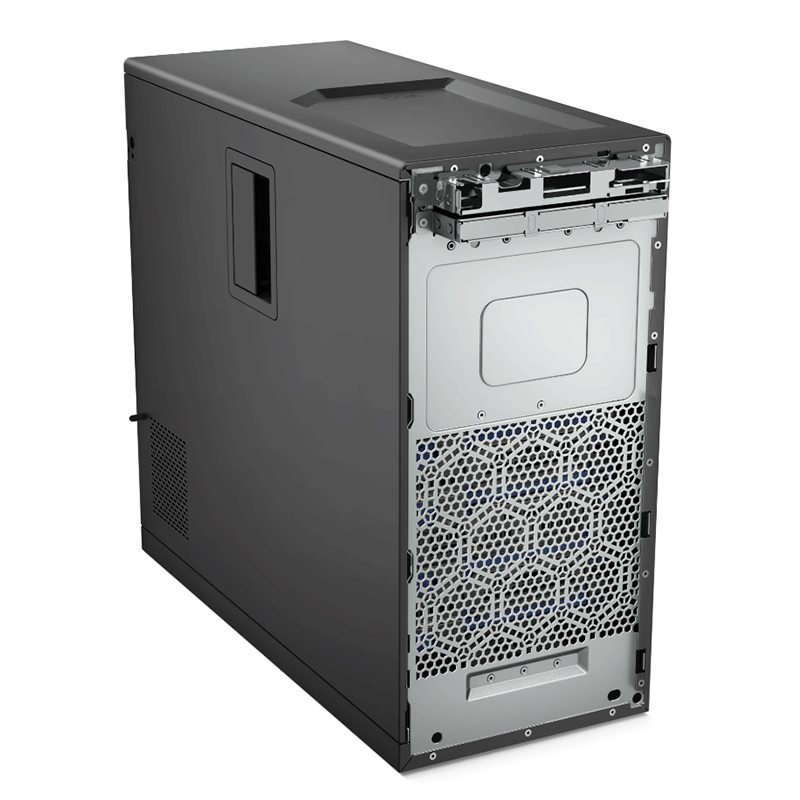

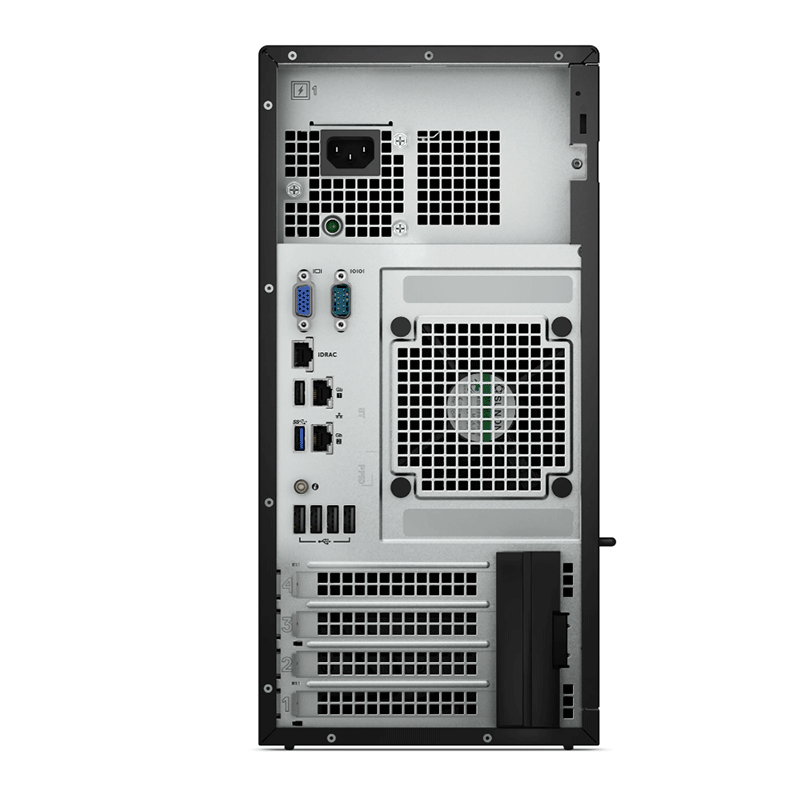

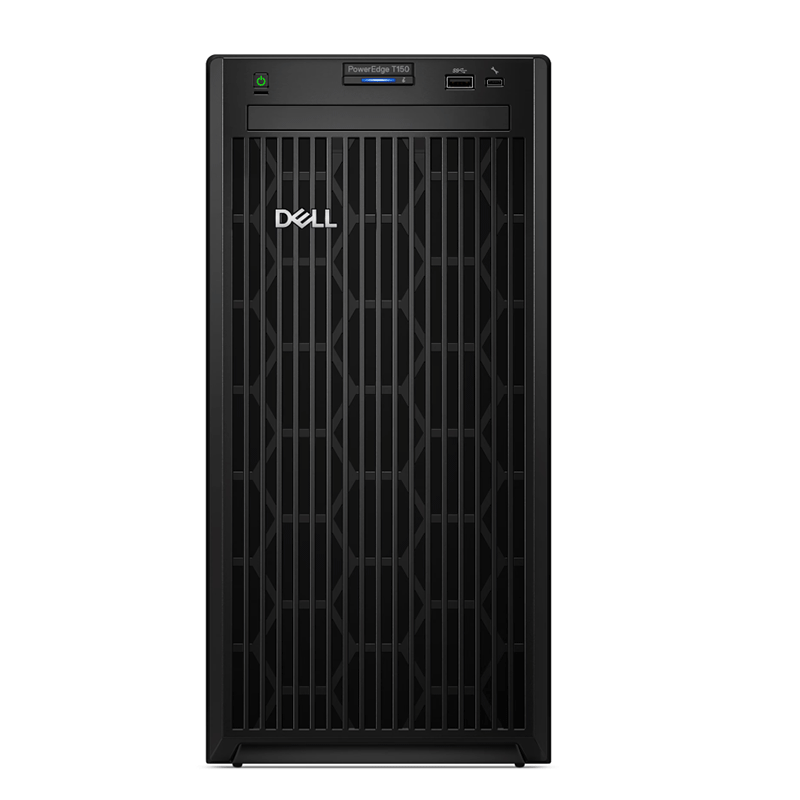

The PowerEdge T150 , powered by the Intel® Xeon® E-2300 processor, delivers powerful compute for common business applications and streamlines productivity. The PowerEdge T150, powered by the Intel® Xeon® E-2300 processors, is an entry level tower server with an ideal balance of adaptability and affordability designed to address your evolving compute demands.
Specification
| Front Storage | 3.5″ Chassis with up to 4 Hard Drives (SAS/SATA) |
|---|---|
| Processor | Intel® Xeon® E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s |
| Processor Thermal Configuration | Heatsink for 80W or less CPU |
| Memory Configuration Type | Performance Optimized |
| Memory DIMM Type and Speed | 3200MT/s UDIMM |
| Memory | 8GB UDIMM, 3200MT/s, ECC |
| Raid | C20, No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed) |
| Selected | 480GB SSD SATA Read Intensive ISE 6Gbps 512e 2.5in w/3.5in Brkt AG, Cabled |
| Advanced System Configuration | UEFI BIOS Boot Mode with GPT Partition |
| Power Cords | Jumper Cord – C13/C14, 0.6M, 250V, 10A (India BIS) |
| Motherboard | PowerEdge T150 Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM |
| OCP 3.0 Network Adapters | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
| Additional Network Cards | Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Full Height |
| Boot Optimized Storage Cards | BOSS controller card + with 1 M.2 Sticks 240G (No RAID),FH NVMe and PCIe Storage Adapters – HBA355e Adapter FH & LP, DIB |
